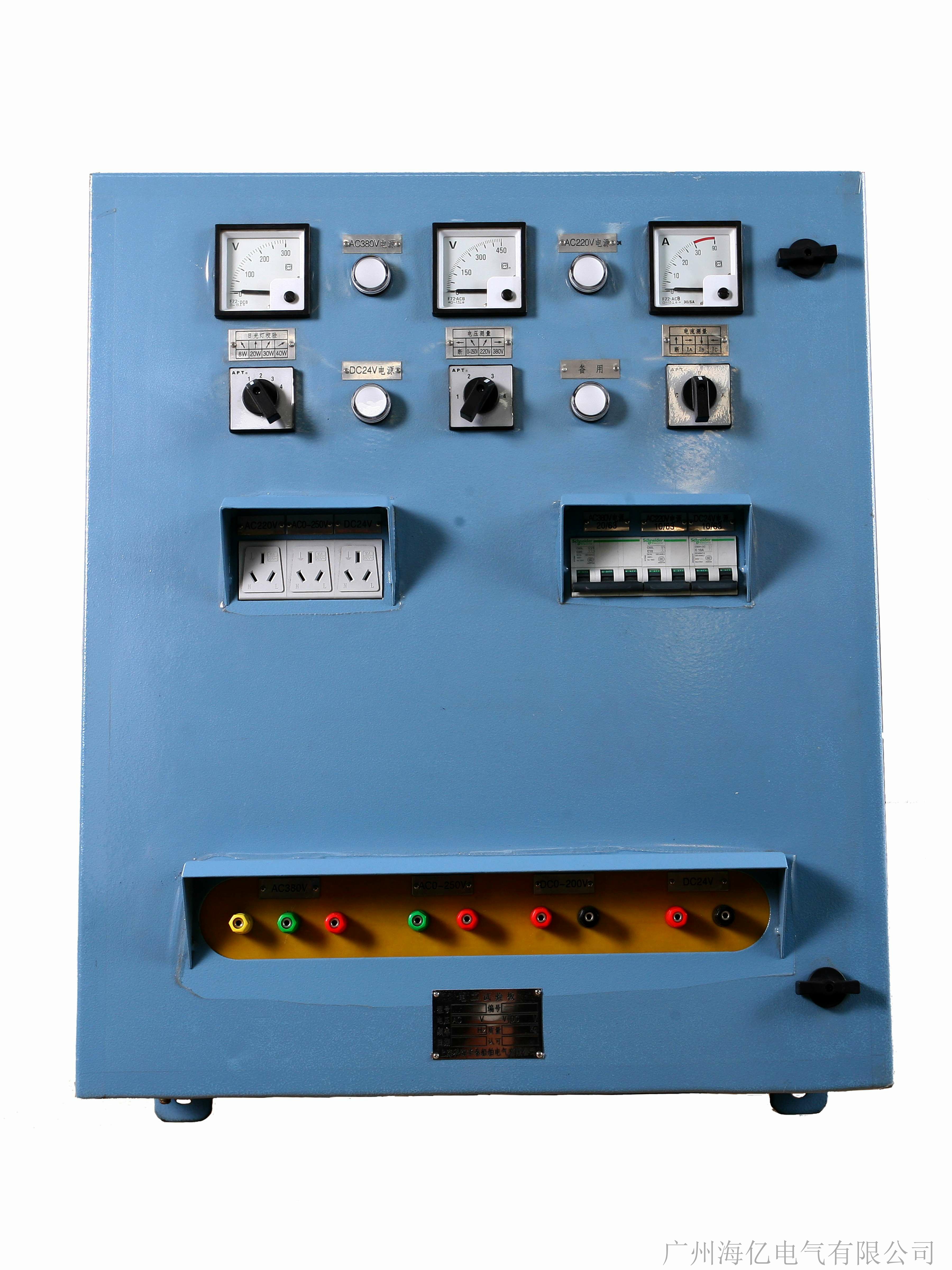

Electrical Test Panel

System Introduction

The Electrical Test Panel provides test power for various marine equipment, including motors, electrical appliances, lighting, and electronics. It is equipped with a range of general and specialized lamp holders, sockets, fluorescent lamp bases, and test terminals for different voltage levels. The product complies with domestic and international ship classification and construction standards, as well as national ship industry standards and amendments.

System Features

• Provides various types of power supplies for marine electricians to maintain, inspect, and repair ship electrical equipment.
• Input Voltage: AC380V
• Output Voltage: AC380V, AC220V, DC24V
• Terminals: 1 group of 3 terminals for AC380V (5kW)
• 1 group of 2 terminals for AC0~250V (1kVA)
• 1 group of 2 terminals for DC0~36V (200W)
• Incandescent and Fluorescent Lamp Holders: B15d, B22d, E27, E40, 8W, 20W, 30W
• Sockets: Two AC380V, Two AC220V, Two DC24V
• Equipped with necessary measuring instruments, fuses, and switches.
